Homework 8

[Racheli]

Hi!

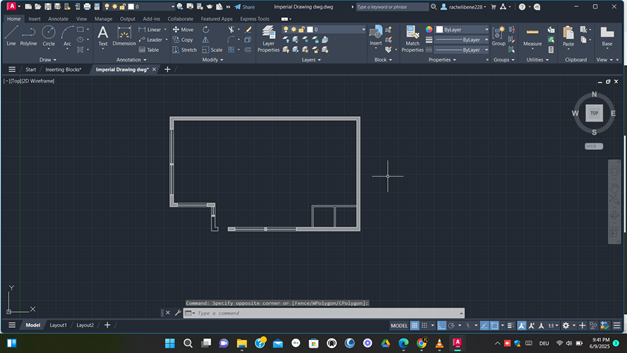

Do i also have to create the doors , could i upload it like this?

[shifra-bender]

You need to create the doors. Its all in the instructions on the pdf

[Racheli]

ok
but i am not so clear how to do it? a little confused…
would it be possible to help me?
Thanks

[shifra-bender]

The straight line of the door symbol needs to equal the opening dimension. Then use the start center end option for the arc selecting the points anti clockwise.

[Racheli]

thanks
where do i offset line so i can trim to create a line to create a door ?

[shifra-bender]

[Racheli]

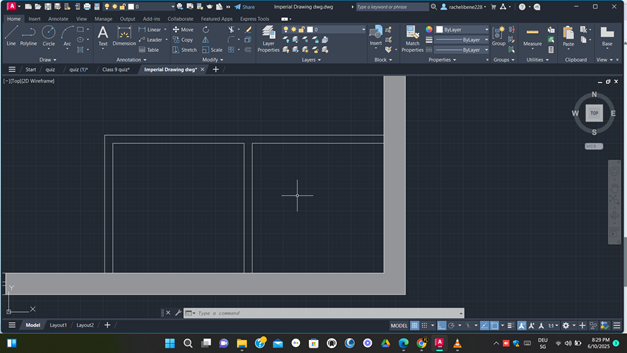

how do i ofsett walls so that i can trim and create door?

[shifra-bender]

The same way you did for the window. You may need to offset then extend if it doesnt cut through

[Racheli]

Thank You
just not so clear with measurements…

[shifra-bender]
