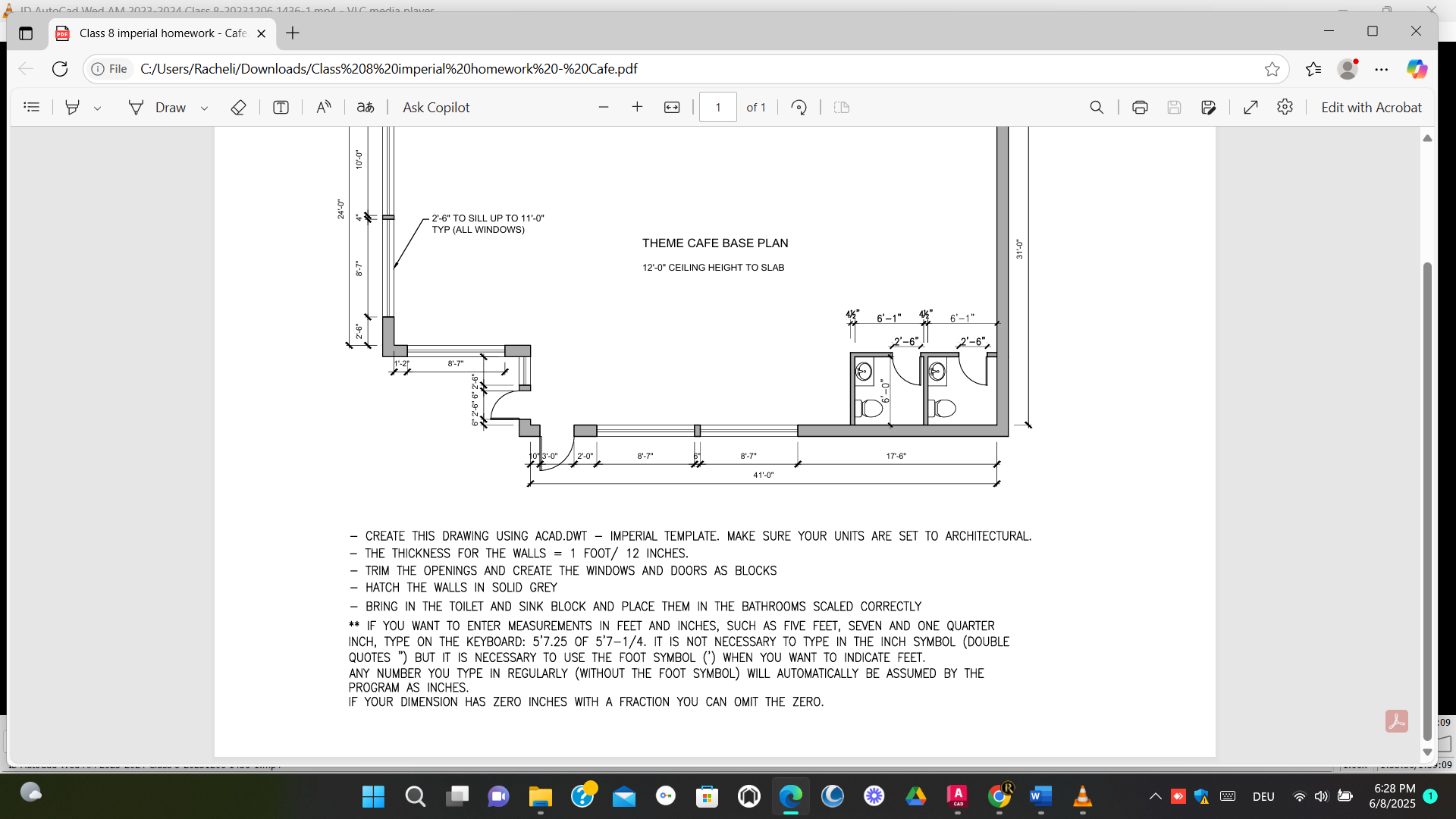

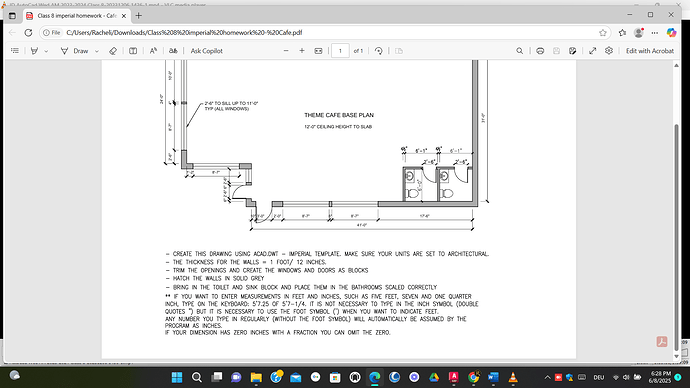

Hi, do i have to convert this to autocad or could i just use it like this to show the measurements?
You need to create it in Autocad and upload the Autocad file
ok thanks
so i use the pdf to help me create it?
and… do i have to create it also if i dont use imperial?
Yes you are using the dimensions given on the pdf. Yes you still need to create it
thank You
how do i get a single footation?
is this " ok?
to create it imperial
That is double quotation, its the same icon on your keyboard just dont hold down on shift when you select it ( ’ )
i dont really know what the problem is but somehow it only goes like this " …
could i use it like that and will it come out the right measurements in inch - foot ?
If you use the double quotation it will be recognized as inches. Did you change over the setting to architectural.
yes i did
You should then be able to create a single quotation on the keyboard and it will be recognized as feet
i am a bit confused… , do i need to create it in inches or feet?
The dimensions are given in feet and inches. I show how you are creating it at the end of the class.
ok Thanks
